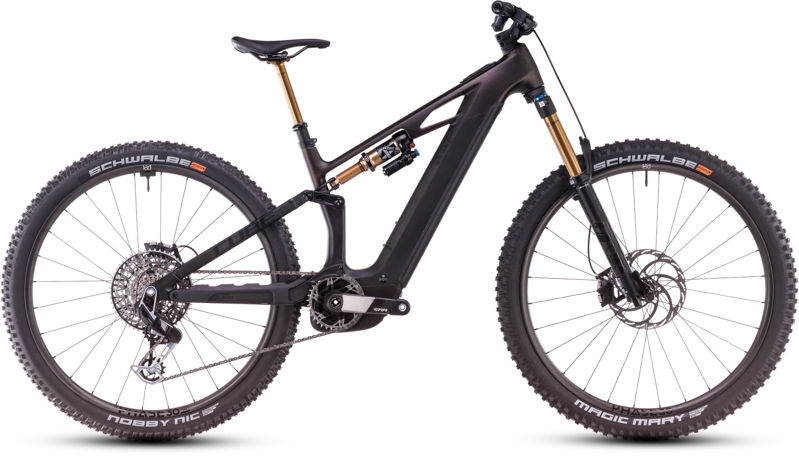

2025 Cube Stereo Hybrid One 44 geometry
Full frame geometry for the 2025 Cube Stereo Hybrid One 44, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|
| S | 606 | 425 | 76 | 65 | 733 | 450 | 1201 |
| M | 620 | 452 | 76.2 | 64.8 | 748 | 457 | 1233 |
| L | 632 | 477 | 76.2 | 64.8 | 748 | 457 | 1264 |
| XL | 658 | 512 | 76.2 | 64.8 | 748 | 457 | 1311 |
All measurements in millimetres unless marked (°) for angles.
