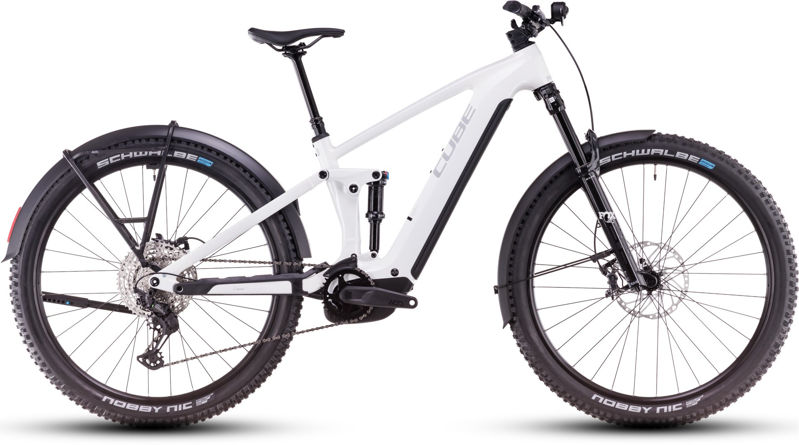

2025 Cube Stereo Hybrid HPA One 44 geometry
Full frame geometry for the 2025 Cube Stereo Hybrid HPA One 44, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 622 | 420 | 76 | 65.4 | 567 | 756 | 461 | 1206 |
| M | 631 | 447 | 76 | 65.4 | 597 | 786 | 494 | 1260 |
| L | 640 | 474 | 76 | 65.4 | 627 | 789 | 494 | 1291 |
| XL | 660 | 510 | 76 | 65.4 | 670 | 799 | 494 | 1337 |
All measurements in millimetres unless marked (°) for angles.
