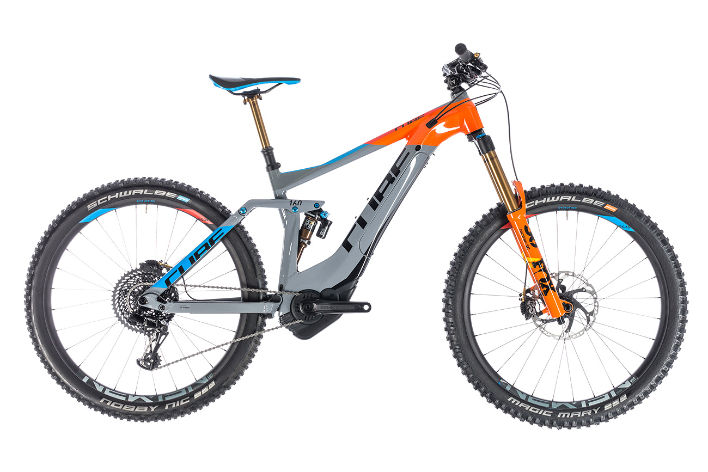

2018 Cube Stereo Hybrid 160 geometry
Full frame geometry for the 2018 Cube Stereo Hybrid 160, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 612 | 410 | 74.3 | 65.8 | 115 | 581 | 390 | 12 | 473 | 1201 |
| 18 | 616 | 430 | 74.3 | 65.8 | 119 | 602 | 420 | 12 | 473 | 1222 |
| 20 | 625 | 440 | 74.3 | 65.8 | 129 | 619 | 470 | 12 | 473 | 1236 |
| 22 | 640 | 446 | 74.3 | 65.8 | 146 | 630 | 520 | 12 | 473 | 1249 |
All measurements in millimetres unless marked (°) for angles.
