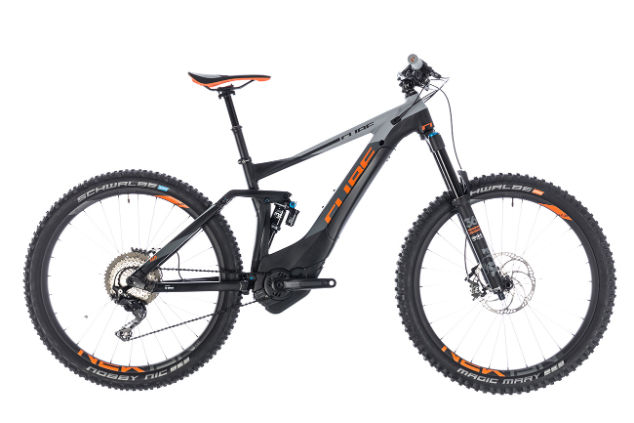

2018 Cube Stereo Hybrid 140 geometry
Full frame geometry for the 2018 Cube Stereo Hybrid 140, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 597 | 400 | 74 | 67.3 | 120 | 570 | 390 | 16 | 473 | 1163 |
| 18 | 597 | 420 | 74 | 67.3 | 120 | 590 | 420 | 16 | 473 | 1183 |
| 20 | 607 | 437 | 74 | 67.3 | 130 | 610 | 470 | 16 | 473 | 1205 |
| 22 | 628 | 450 | 74 | 67.3 | 150 | 628 | 520 | 16 | 473 | 1225 |
All measurements in millimetres unless marked (°) for angles.
