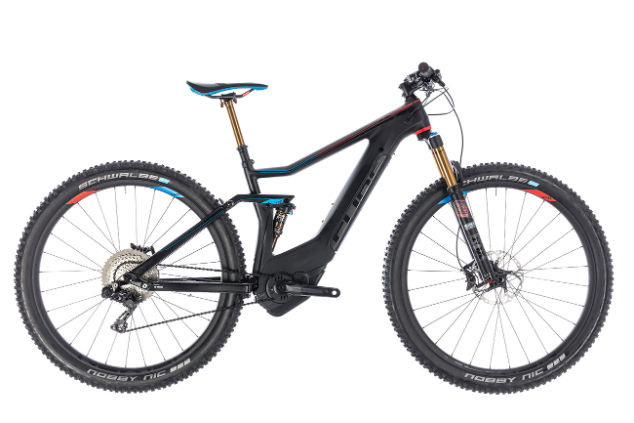

2018 Cube Stereo Hybrid 120 geometry
Full frame geometry for the 2018 Cube Stereo Hybrid 120, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 595 | 406 | 73.7 | 68.5 | 105 | 574 | 380 | 30 | 476 | 1152 |
| 18 | 603 | 418 | 73.2 | 68 | 110 | 593 | 420 | 30 | 490 | 1193 |
| 20 | 612 | 433 | 73.2 | 68 | 120 | 611 | 460 | 30 | 490 | 1212 |
| 22 | 631 | 445 | 73.2 | 68 | 140 | 629 | 500 | 30 | 490 | 1232 |
All measurements in millimetres unless marked (°) for angles.
