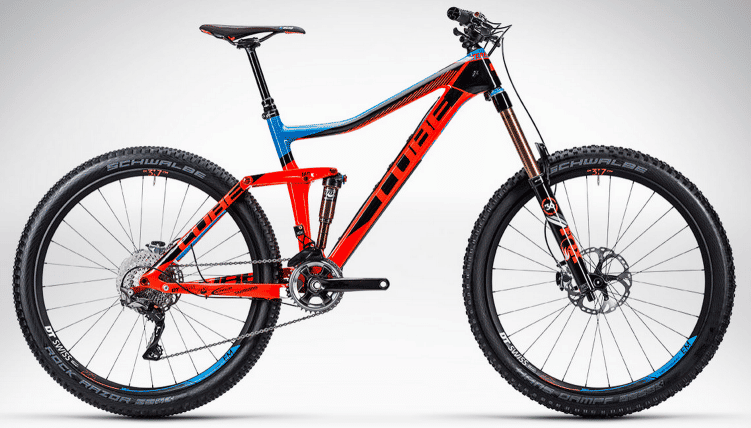

2014 Cube Stereo 160 Super HPC 27.5 geometry
Full frame geometry for the 2014 Cube Stereo 160 Super HPC 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 598 | 407 | 74.6 | 66.5 | 100 | 566 | 420 | 14 | 442 | 1150 |
| 18 | 607 | 423 | 74.6 | 66.5 | 110 | 586 | 470 | 14 | 442 | 1170 |
| 20 | 616 | 432 | 74.6 | 66.5 | 120 | 598 | 515 | 14 | 442 | 1183 |
| 22 | 634 | 434 | 74.6 | 66.5 | 140 | 606 | 565 | 14 | 442 | 1193 |
All measurements in millimetres unless marked (°) for angles.
