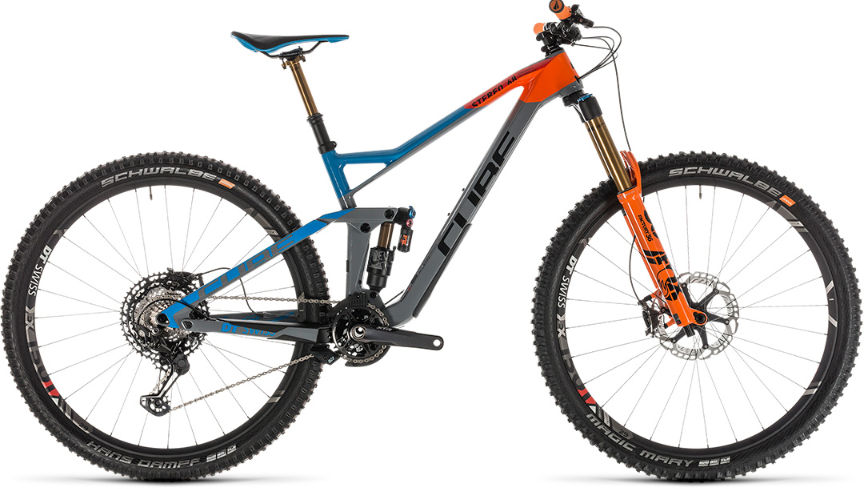

2018 Cube Stereo 150 C:68 geometry
Full frame geometry for the 2018 Cube Stereo 150 C:68, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 619 | 417 | 75.5 | 66 | 95 | 571 | 370 | 34 | 435 | 1167 |
| 18 | 624 | 437 | 75.5 | 66 | 100 | 592 | 420 | 34 | 435 | 1189 |
| 20 | 633 | 457 | 75.5 | 66 | 110 | 616 | 470 | 34 | 435 | 1213 |
| 22 | 651 | 477 | 75.5 | 66 | 130 | 643 | 520 | 34 | 435 | 1241 |
All measurements in millimetres unless marked (°) for angles.
