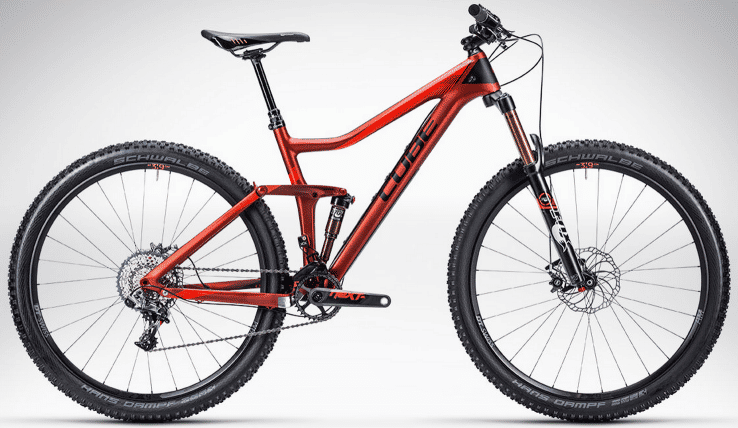

2014 Cube Stereo 140 Super HPC 29 geometry
Full frame geometry for the 2014 Cube Stereo 140 Super HPC 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 625 | 399 | 74.5 | 68 | 100 | 566 | 438 | 38 | 452 | 1141 |
| 18 | 635 | 415 | 74.5 | 68 | 110 | 586 | 471 | 38 | 452 | 1162 |
| 20 | 644 | 424 | 74.5 | 68 | 120 | 599 | 512 | 38 | 452 | 1175 |
| 22 | 662 | 426 | 74.5 | 68 | 140 | 607 | 565 | 38 | 452 | 1182 |
All measurements in millimetres unless marked (°) for angles.
