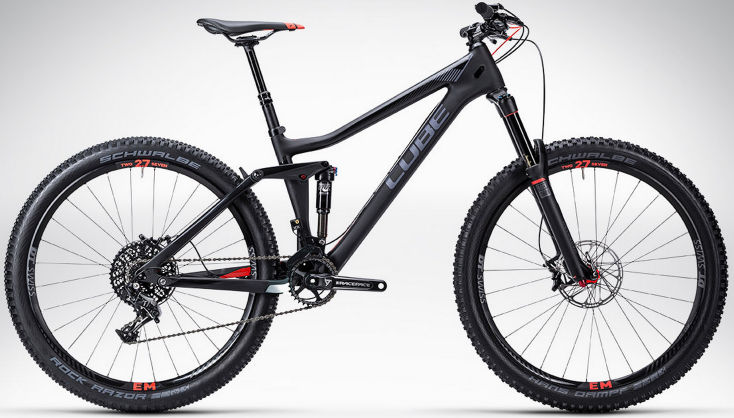

2014 Cube Stereo 140 Super HPC 27.5 MK I geometry
Full frame geometry for the 2014 Cube Stereo 140 Super HPC 27.5 MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 589 | 412 | 74.5 | 67.5 | 110 | 570 | 380 | 16 | 435 | 1132 |
| 18 | 598 | 429 | 74.5 | 67.5 | 120 | 590 | 400 | 16 | 435 | 1152 |
| 20 | 607 | 444 | 74.5 | 67.5 | 130 | 608 | 450 | 16 | 435 | 1171 |
| 22 | 626 | 449 | 74.5 | 67.5 | 150 | 619 | 500 | 16 | 435 | 1184 |
All measurements in millimetres unless marked (°) for angles.
