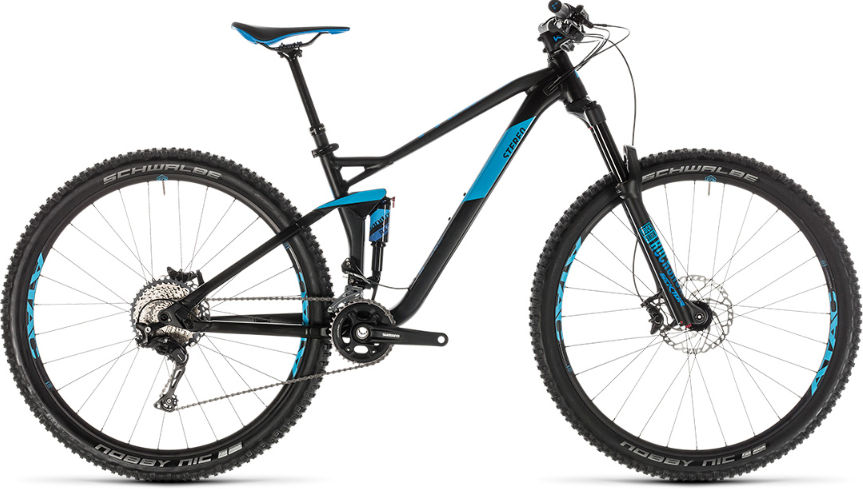

2018 Cube Stereo 120 geometry
Full frame geometry for the 2018 Cube Stereo 120, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 604 | 420 | 71 | 67 | 100 | 570 | 370 | 40 | 433 | 1145 |
| 18 | 606 | 440 | 71 | 67 | 103 | 591 | 420 | 40 | 433 | 1166 |
| 20 | 615 | 460 | 71 | 67 | 113 | 614 | 470 | 40 | 433 | 1190 |
| 22 | 634 | 480 | 71 | 67 | 133 | 640 | 520 | 40 | 433 | 1218 |
All measurements in millimetres unless marked (°) for angles.
