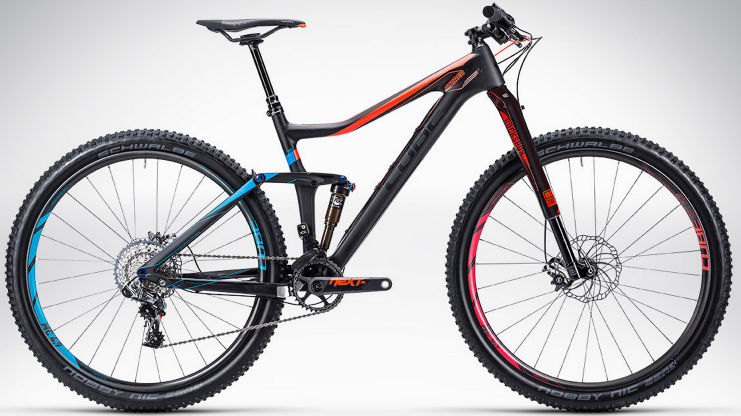

2014 Cube Stereo 120 Super HPC 29 geometry
Full frame geometry for the 2014 Cube Stereo 120 Super HPC 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 600 | 407 | 74.5 | 69 | 100 | 566 | 432 | 38 | 452 | 1128 |
| 18 | 610 | 422 | 74.5 | 69 | 110 | 585 | 470 | 38 | 452 | 1141 |
| 20 | 619 | 436 | 74.5 | 69 | 120 | 602 | 515 | 38 | 452 | 1147 |
| 22 | 638 | 439 | 74.5 | 69 | 140 | 611 | 565 | 38 | 452 | 1174 |
All measurements in millimetres unless marked (°) for angles.
