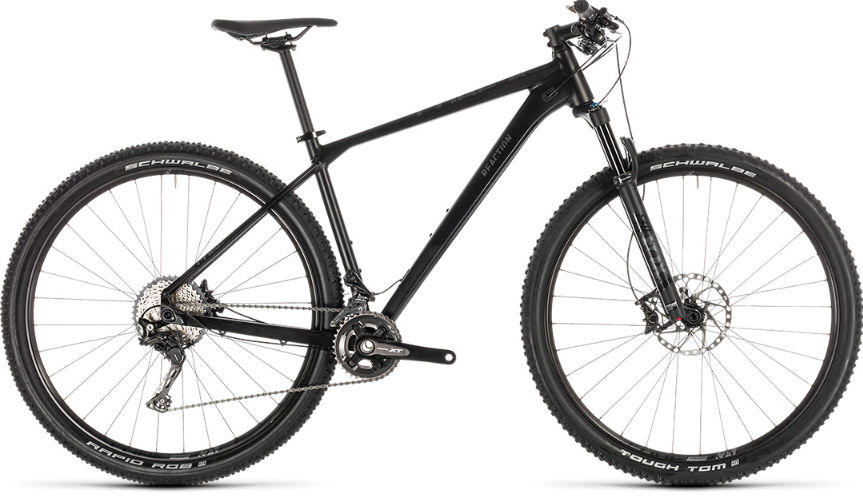

2018 Cube Reaction geometry
Full frame geometry for the 2018 Cube Reaction, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 610 | 387 | 74 | 69 | 103 | 558 | 370 | 52 | 410 | 1047 |
| 17 | 617 | 400 | 74 | 69 | 109 | 580 | 420 | 65 | 423 | 1084 |
| 19 | 627 | 416 | 74 | 69 | 120 | 600 | 470 | 65 | 423 | 1105 |
| 21 | 636 | 433 | 74 | 69 | 130 | 620 | 515 | 65 | 423 | 1125 |
| 23 | 650 | 449 | 74 | 69 | 145 | 640 | 565 | 65 | 423 | 1146 |
All measurements in millimetres unless marked (°) for angles.
