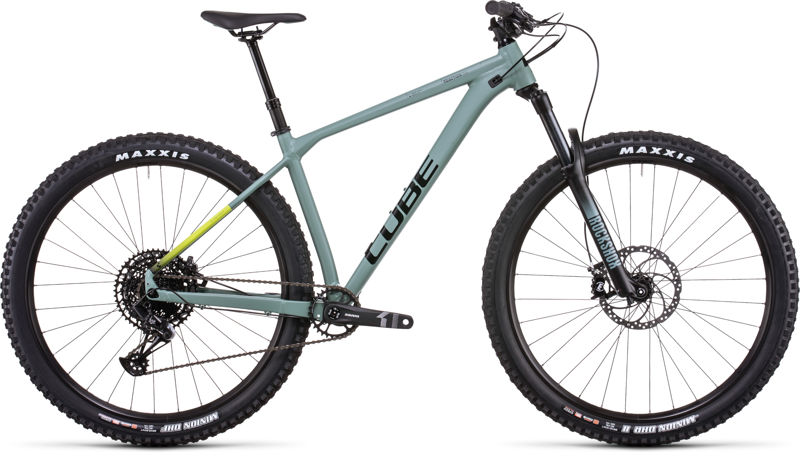

2022 Cube Reaction HPA geometry
Full frame geometry for the 2022 Cube Reaction HPA, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|
| 16"S | 622 | 395 | 73.5 | 67 | 427 | 1115 |
| 18" M | 627 | 415 | 73.5 | 67 | 427 | 1136 |
| 20" L | 638 | 435 | 73.5 | 67 | 427 | 1161 |
| 22" XL | 653 | 455 | 73.5 | 67 | 427 | 1188 |
All measurements in millimetres unless marked (°) for angles.
