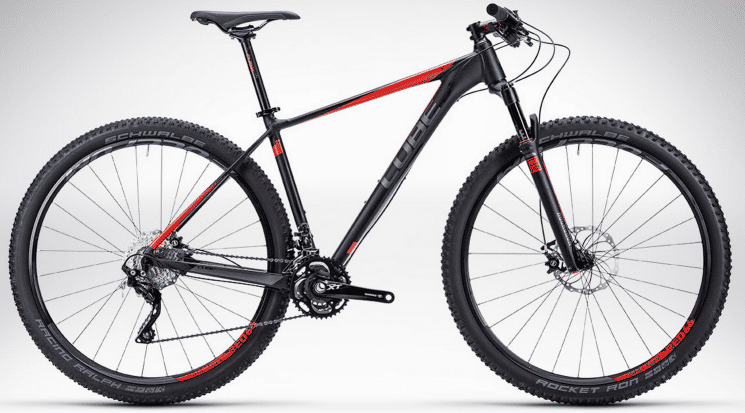

2014 Cube Reaction HPA 29 geometry
Full frame geometry for the 2014 Cube Reaction HPA 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 609 | 381 | 73 | 70 | 95 | 567 | 370 | 65 | 440 | 1068 |
| 17 | 609 | 399 | 73 | 70 | 95 | 585 | 420 | 65 | 440 | 1086 |
| 19 | 613 | 415 | 73 | 70 | 100 | 602 | 470 | 65 | 440 | 1103 |
| 21 | 623 | 433 | 73 | 70 | 110 | 623 | 515 | 65 | 440 | 1125 |
| 23 | 637 | 440 | 73 | 70 | 125 | 635 | 565 | 65 | 440 | 1138 |
All measurements in millimetres unless marked (°) for angles.
