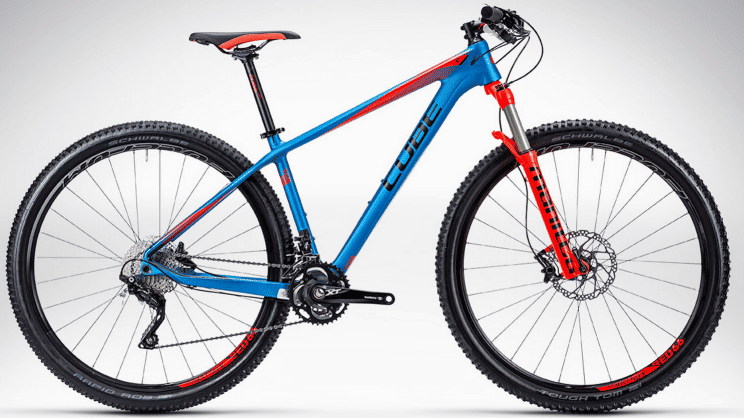

2014 Cube Reaction GTC 29 geometry
Full frame geometry for the 2014 Cube Reaction GTC 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 606 | 386 | 73 | 69.5 | 95 | 570 | 370 | 65 | 435 | 1073 |
| 17 | 618 | 400 | 73 | 69.5 | 105 | 588 | 420 | 65 | 435 | 1085 |
| 19 | 627 | 418 | 73 | 69.5 | 115 | 609 | 470 | 65 | 435 | 1107 |
| 21 | 637 | 434 | 73 | 70 | 125 | 628 | 515 | 65 | 435 | 1127 |
| 23 | 651 | 441 | 73 | 70 | 140 | 639 | 565 | 65 | 435 | 1138 |
All measurements in millimetres unless marked (°) for angles.
