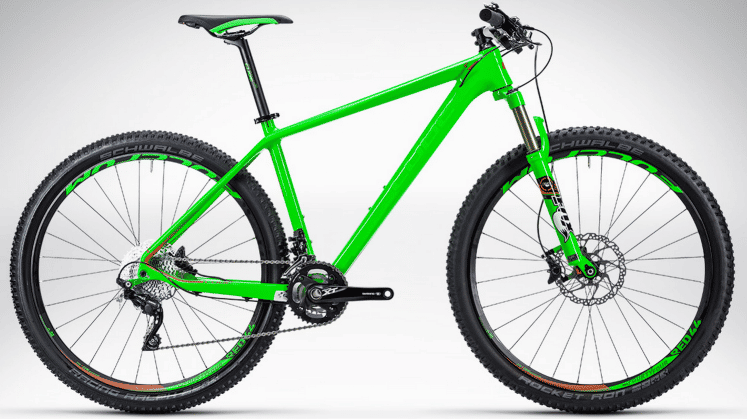

2014 Cube Reaction GTC 27.5 geometry
Full frame geometry for the 2014 Cube Reaction GTC 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 585 | 397 | 73.5 | 70 | 95 | 570 | 405 | 52 | 424 | 1059 |
| 18 | 590 | 418 | 73.5 | 70 | 100 | 593 | 450 | 52 | 424 | 1082 |
| 20 | 599 | 431 | 73.5 | 70 | 110 | 608 | 490 | 52 | 424 | 1098 |
| 22 | 613 | 444 | 73.5 | 70 | 125 | 626 | 540 | 52 | 424 | 1117 |
All measurements in millimetres unless marked (°) for angles.
