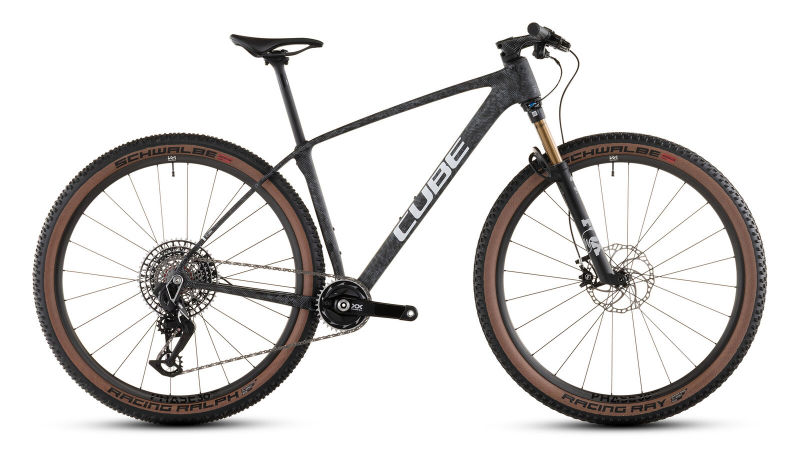

2026 Cube Phenix C:68X geometry
Full frame geometry for the 2026 Cube Phenix C:68X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 609 | 410 | 74.7 | 69 | 94 | 575 | 370 | 762 | 63 | 425 | 1091 |
| M | 612 | 435 | 74.3 | 69 | 97 | 605 | 420 | 793 | 63 | 425 | 1117 |
| L | 624 | 456 | 74.3 | 69 | 110 | 630 | 450 | 817 | 63 | 425 | 1143 |
| XL | 639 | 482 | 74.3 | 69 | 126 | 660 | 510 | 857 | 63 | 425 | 1174 |
All measurements in millimetres unless marked (°) for angles.
