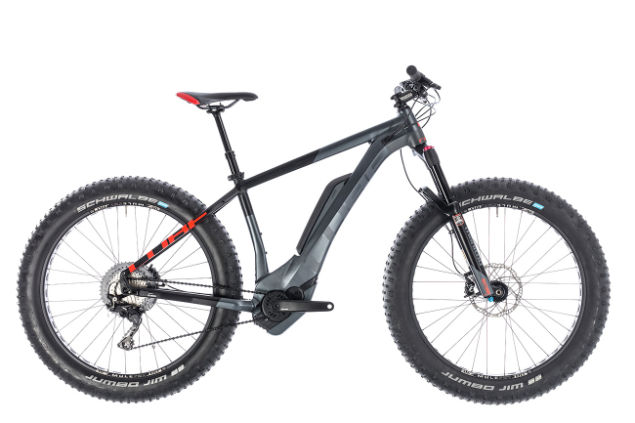

2018 Cube Nutrail Hybrid geometry
Full frame geometry for the 2018 Cube Nutrail Hybrid, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 17 | 625 | 397 | 73 | 69 | 112 | 588 | 405 | 58 | 484 | 1149 |
| 19 | 634 | 415 | 73 | 69 | 122 | 609 | 450 | 58 | 484 | 1171 |
| 21 | 643 | 431 | 73 | 69 | 132 | 628 | 495 | 58 | 484 | 1191 |
All measurements in millimetres unless marked (°) for angles.
