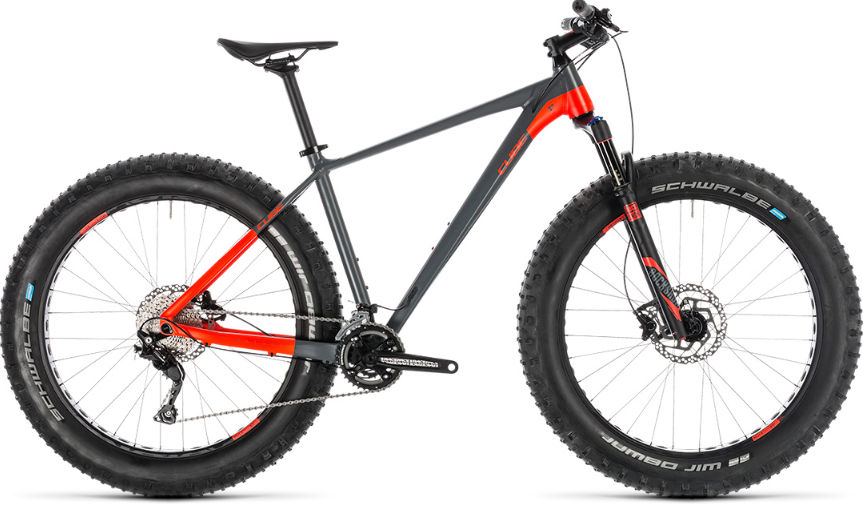

2019 Cube Nutrail 26 geometry
Full frame geometry for the 2019 Cube Nutrail 26, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 625 | 381 | 73 | 69 | 105 | 570 | 370 | 738 | 65 | 443 | 1088 |
| 17 | 625 | 398 | 73 | 69 | 105 | 588 | 420 | 771 | 65 | 443 | 1106 |
| 19 | 634 | 417 | 73 | 69 | 115 | 609 | 470 | 807 | 65 | 443 | 1128 |
| 21 | 643 | 433 | 73 | 69 | 125 | 628 | 515 | 837 | 65 | 443 | 1148 |
All measurements in millimetres unless marked (°) for angles.
