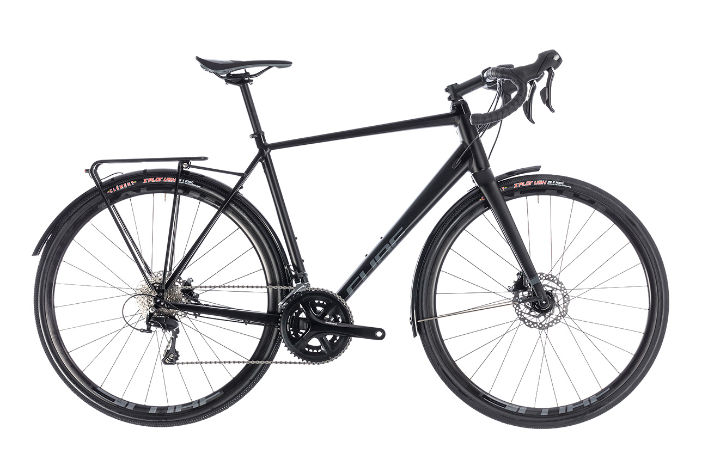

2018 Cube Nuroad geometry
Full frame geometry for the 2018 Cube Nuroad, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 533 | 376 | 75.2 | 70 | 118 | 517 | 470 | 70 | 430 | 1018 |
| 53 | 557 | 382 | 74.5 | 71 | 140 | 537 | 500 | 70 | 430 | 1023 |
| 56 | 588 | 386 | 73.5 | 71.5 | 170 | 560 | 530 | 70 | 430 | 1032 |
| 58 | 609 | 389 | 73 | 72 | 190 | 575 | 550 | 70 | 430 | 1037 |
| 61 | 632 | 398 | 73 | 72.5 | 213 | 592 | 580 | 70 | 430 | 1048 |
All measurements in millimetres unless marked (°) for angles.
