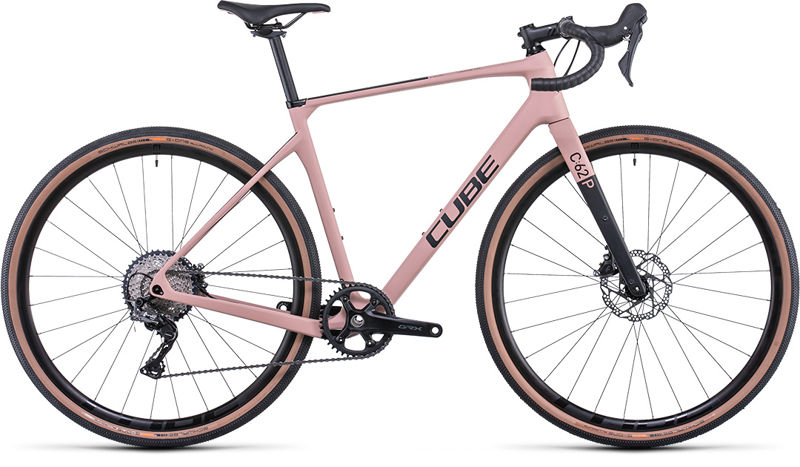

2022 Cube Nuroad WS C62 geometry
Full frame geometry for the 2022 Cube Nuroad WS C62, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 cm/XS | 519.4 | 385.7 | 75.3 | 69 | 102 | 522 | 434.2 | 749.3 | 70 | 439.5 | 1041.4 |
| 53 cm S | 543.8 | 386.2 | 74.5 | 70 | 124 | 537 | 464.2 | 776.9 | 70 | 439.5 | 1041.5 |
| 56 cm / M | 578.1 | 388.8 | 73.5 | 71.5 | 154 | 560 | 494.2 | 808.1 | 70 | 439.5 | 1041.2 |
| 58 cm /L | 598.8 | 391.9 | 73 | 72 | 174 | 575 | 514.2 | 828 | 70 | 439.5 | 1046 |
All measurements in millimetres unless marked (°) for angles.
