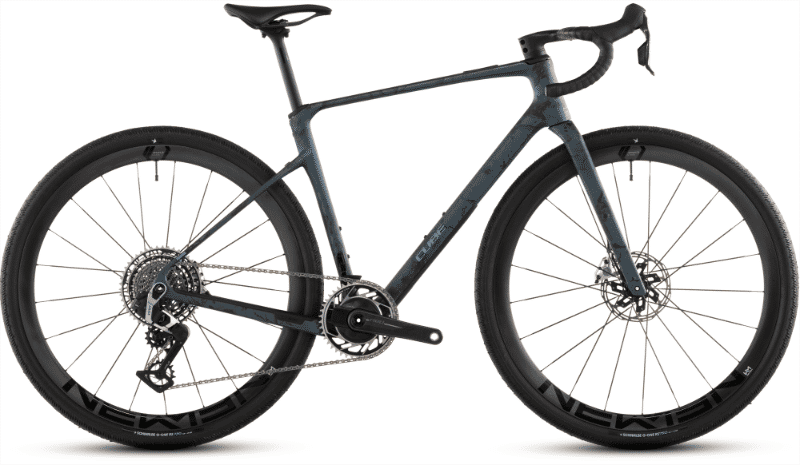

2026 Cube Nuroad C:62 geometry
Full frame geometry for the 2026 Cube Nuroad C:62, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 388 | 75.5 | 69 | 102 | 522 | 430 | 743 | 70 | 440 | 1043 |
| S | 544 | 388 | 74.7 | 70 | 124 | 537 | 460 | 771 | 70 | 440 | 1044 |
| M | 579 | 393 | 73.9 | 71.5 | 155 | 560 | 490 | 805 | 70 | 440 | 1046 |
| L | 599 | 392 | 73 | 72 | 174 | 575 | 510 | 824 | 70 | 442 | 1048 |
| XL | 623 | 402 | 73 | 72.5 | 197 | 592 | 540 | 851 | 70 | 442 | 1060 |
All measurements in millimetres unless marked (°) for angles.
