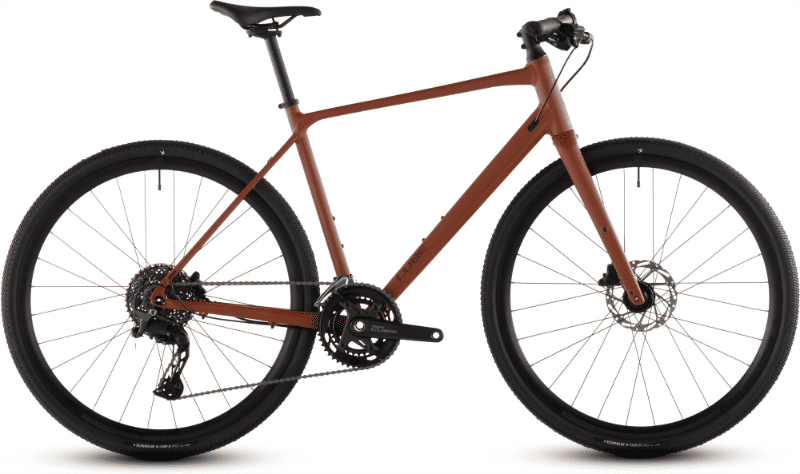

2026 Cube Nulane HPA geometry
Full frame geometry for the 2026 Cube Nulane HPA, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 548 | 385 | 74 | 70.5 | 137 | 542 | 460 | 60 | 442 | 1044 |
| 53 | 571 | 391 | 73 | 71.5 | 157 | 566 | 490 | 60 | 442 | 1049 |
| 56 | 587 | 395 | 73 | 72 | 172 | 574 | 520 | 60 | 442 | 1052 |
| 59 | 611 | 406 | 73 | 72 | 197 | 593 | 550 | 60 | 442 | 1072 |
| 62 | 640 | 416 | 73 | 72 | 227 | 612 | 580 | 60 | 442 | 1091 |
All measurements in millimetres unless marked (°) for angles.
