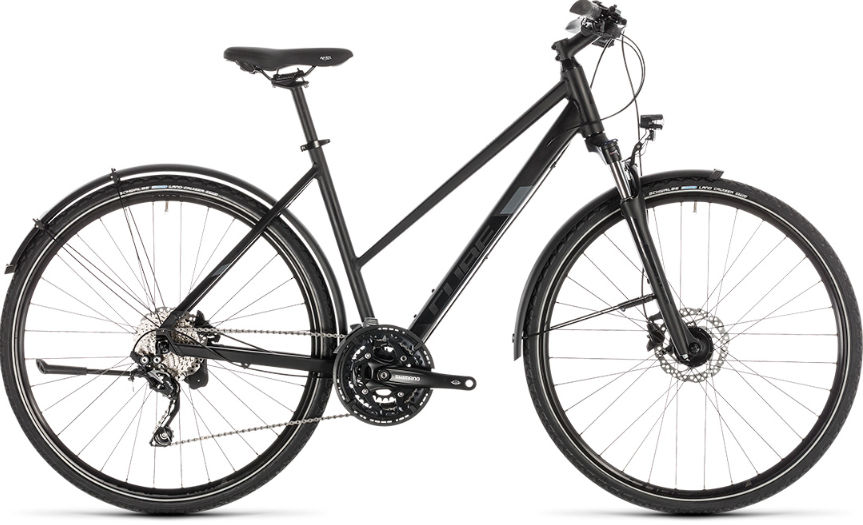

2019 Cube Nature Womens geometry
Full frame geometry for the 2019 Cube Nature Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 623 | 380 | 73 | 71 | 130 | 570 | 440 | 821 | 55 | 618 | 440 | 1052 |
| 50 | 632 | 387 | 73 | 71 | 140 | 580 | 480 | 846 | 55 | 628 | 440 | 1062 |
| 54 | 651 | 396 | 73 | 71 | 160 | 595 | 520 | 876 | 55 | 644 | 440 | 1078 |
All measurements in millimetres unless marked (°) for angles.
