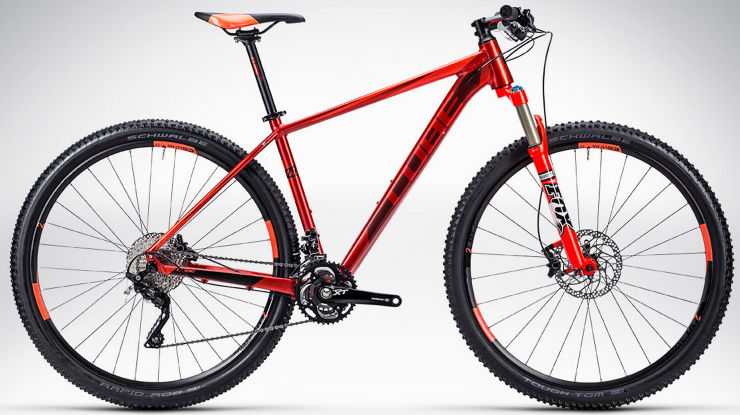

2014 Cube Ltd 29 geometry
Full frame geometry for the 2014 Cube Ltd 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 610 | 380 | 73 | 69 | 100 | 565 | 370 | 65 | 438 | 1078 |
| 17 | 617 | 392 | 73 | 69.5 | 105 | 580 | 420 | 65 | 438 | 1086 |
| 19 | 629 | 409 | 73 | 70 | 115 | 600 | 470 | 65 | 438 | 1101 |
| 21 | 638 | 426 | 73 | 70 | 125 | 620 | 515 | 65 | 438 | 1122 |
| 23 | 652 | 431 | 73 | 70 | 140 | 630 | 565 | 65 | 438 | 1133 |
All measurements in millimetres unless marked (°) for angles.
