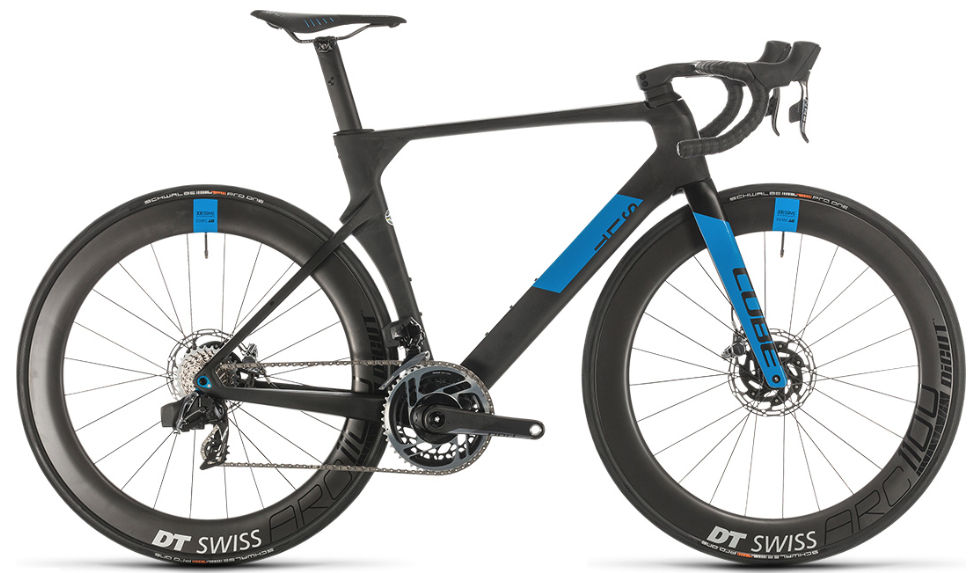

2019 Cube Litening c68x geometry
Full frame geometry for the 2019 Cube Litening c68x, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 514 | 389 | 75 | 72.3 | 110 | 527 | 460 | 757 | 72 | 410 | 981 |
| 52 | 524 | 388 | 74.2 | 72.5 | 120 | 537 | 480 | 773 | 72 | 410 | 981 |
| 54 | 542 | 389 | 73.5 | 73 | 140 | 550 | 500 | 797 | 69 | 410 | 980 |
| 56 | 563 | 398 | 73.5 | 73.5 | 160 | 565 | 520 | 818 | 69 | 410 | 990 |
| 58 | 580 | 403 | 73 | 73.5 | 180 | 580 | 540 | 839 | 67 | 410 | 1001 |
| 60 | 595 | 405 | 72.5 | 73.5 | 195 | 592 | 560 | 858 | 67 | 410 | 1010 |
All measurements in millimetres unless marked (°) for angles.
