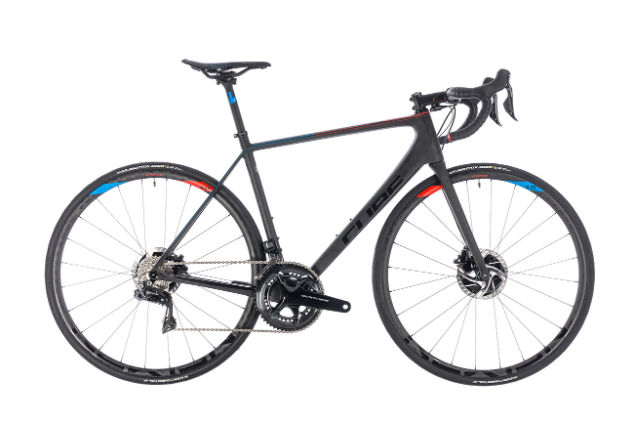

2018 Cube Litening C:68 Disc geometry
Full frame geometry for the 2018 Cube Litening C:68 Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 514 | 384 | 74.5 | 72.3 | 110 | 527 | 460 | 72 | 412 | 977 |
| 52 | 524 | 387 | 74 | 72.5 | 120 | 537 | 480 | 72 | 412 | 981 |
| 54 | 542 | 389 | 73.5 | 73 | 140 | 550 | 500 | 69 | 412 | 986 |
| 56 | 563 | 398 | 73.5 | 73.5 | 160 | 565 | 520 | 69 | 412 | 996 |
| 58 | 580 | 403 | 73 | 73.5 | 180 | 580 | 540 | 67 | 412 | 1007 |
| 60 | 592 | 405 | 72.5 | 73.5 | 195 | 592 | 560 | 67 | 412 | 1013 |
| 62 | 609 | 412 | 72.5 | 73.5 | 210 | 604 | 580 | 67 | 412 | 1025 |
All measurements in millimetres unless marked (°) for angles.
