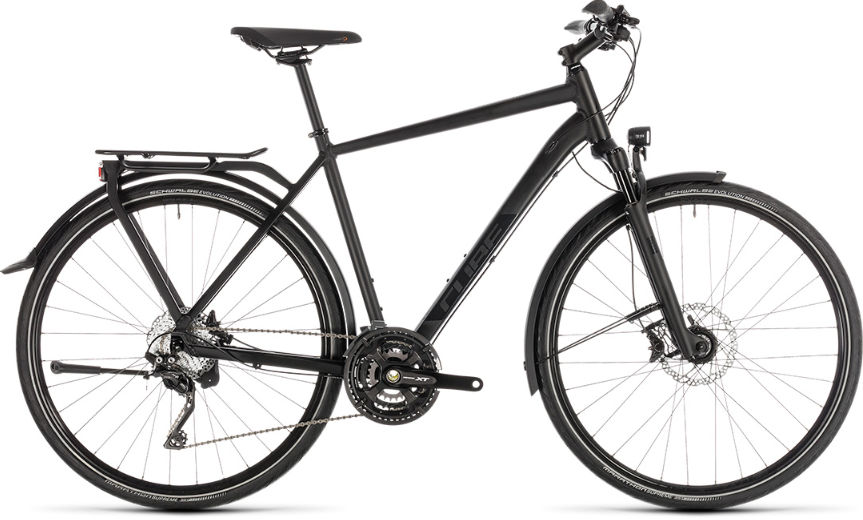

2019 Cube Kathmandu geometry
Full frame geometry for the 2019 Cube Kathmandu, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 592 | 377 | 73 | 70 | 110 | 558 | 460 | 811 | 60 | 618 | 445 | 1056 |
| 50 | 613 | 382 | 73 | 70.5 | 130 | 569 | 500 | 842 | 60 | 625 | 445 | 1063 |
| 54 | 634 | 389 | 73 | 71 | 150 | 583 | 540 | 873 | 60 | 634 | 445 | 1072 |
| 58 | 653 | 399 | 73 | 71 | 170 | 598 | 480 | 851 | 60 | 650 | 445 | 1088 |
| 62 | 671 | 408 | 73 | 71 | 190 | 613 | 620 | 934 | 60 | 665 | 445 | 1103 |
All measurements in millimetres unless marked (°) for angles.
