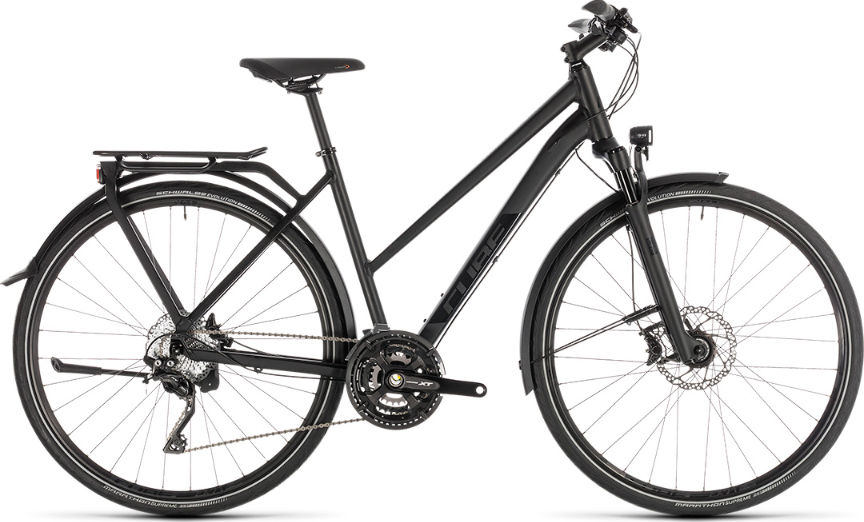

2019 Cube Kathmandu Womens geometry
Full frame geometry for the 2019 Cube Kathmandu Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 631 | 370 | 73 | 70.5 | 150 | 563 | 460 | 830 | 60 | 620 | 445 | 1058 |
| 50 | 634 | 384 | 73 | 71 | 150 | 578 | 500 | 852 | 60 | 629 | 445 | 1067 |
| 54 | 667 | 389 | 73 | 71 | 185 | 593 | 540 | 890 | 60 | 645 | 445 | 1083 |
All measurements in millimetres unless marked (°) for angles.
