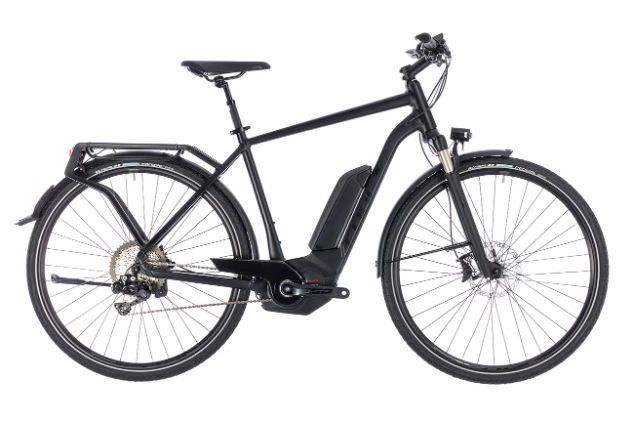

2018 Cube Kathmandu Hybrid geometry
Full frame geometry for the 2018 Cube Kathmandu Hybrid, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 606 | 387 | 73 | 69.5 | 130 | 572 | 480 | 60 | 470 | 1095 |
| 54 | 631 | 390 | 73 | 71 | 150 | 583 | 520 | 60 | 470 | 1096 |
| 58 | 650 | 400 | 73 | 71 | 170 | 598 | 560 | 60 | 470 | 1113 |
| 62 | 669 | 409 | 73 | 71 | 190 | 613 | 600 | 60 | 470 | 1129 |
All measurements in millimetres unless marked (°) for angles.
