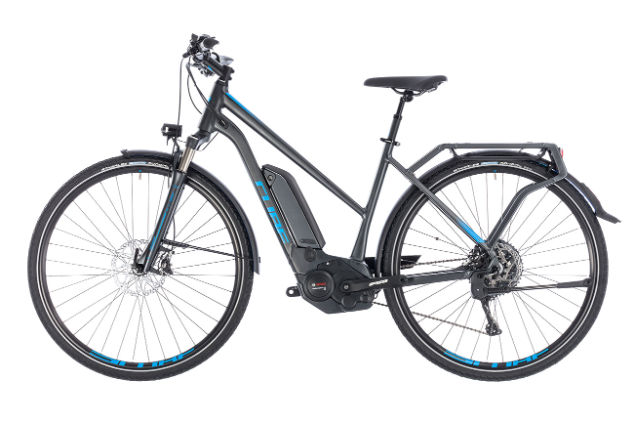

2018 Cube Kathmandu Hybrid Womens geometry
Full frame geometry for the 2018 Cube Kathmandu Hybrid Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 625 | 378 | 73 | 68.5 | 150 | 569 | 440 | 817 | 60 | 470 | 1100 |
| 50 | 627 | 390 | 73 | 70 | 150 | 582 | 480 | 838 | 60 | 470 | 1107 |
| 54 | 662 | 391 | 73 | 71 | 185 | 593 | 520 | 877 | 60 | 470 | 1114 |
All measurements in millimetres unless marked (°) for angles.
