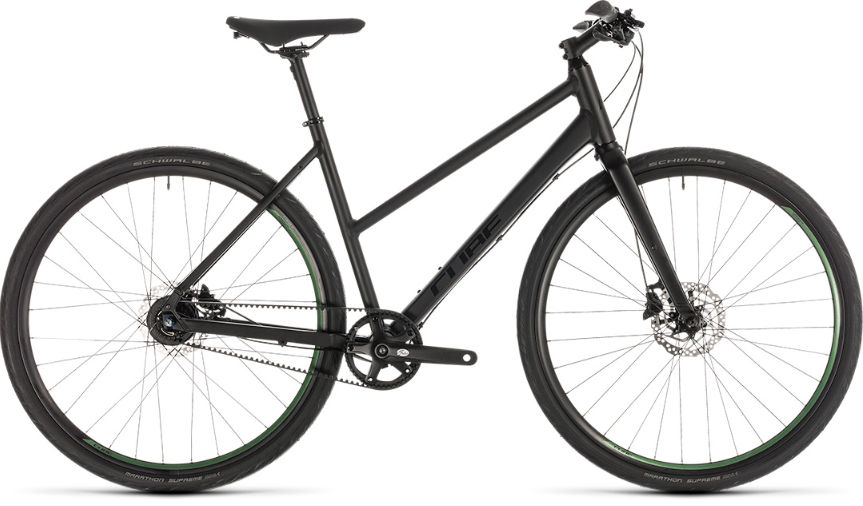

2019 Cube Hyde Womens geometry
Full frame geometry for the 2019 Cube Hyde Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 584 | 389 | 74.5 | 69 | 125 | 551 | 440 | 784 | 70 | 638 | 470 | 1099 |
| 50 | 607 | 391 | 74 | 70 | 145 | 565 | 480 | 817 | 70 | 638 | 470 | 1099 |
| 54 | 630 | 393 | 73.5 | 71 | 165 | 580 | 520 | 850 | 70 | 638 | 470 | 1099 |
All measurements in millimetres unless marked (°) for angles.
