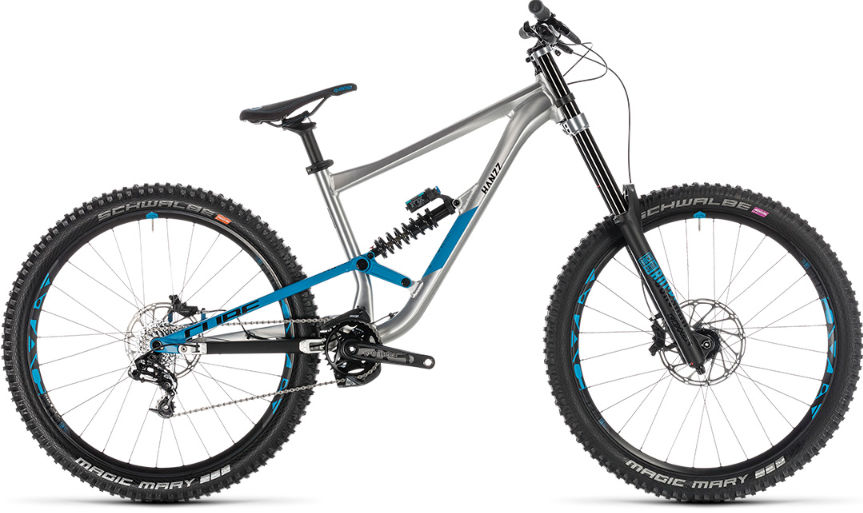

2018 Cube Hanzz 190 geometry
Full frame geometry for the 2018 Cube Hanzz 190, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 604 | 399 | 75 | 63.5 | 110 | 559 | 375 | 10 | 427 | 1185 |
| 18 | 608 | 423 | 75 | 63.5 | 115 | 585 | 415 | 10 | 427 | 1209 |
| 20 | 617 | 443 | 75 | 63.5 | 125 | 608 | 460 | 10 | 427 | 1229 |
All measurements in millimetres unless marked (°) for angles.
