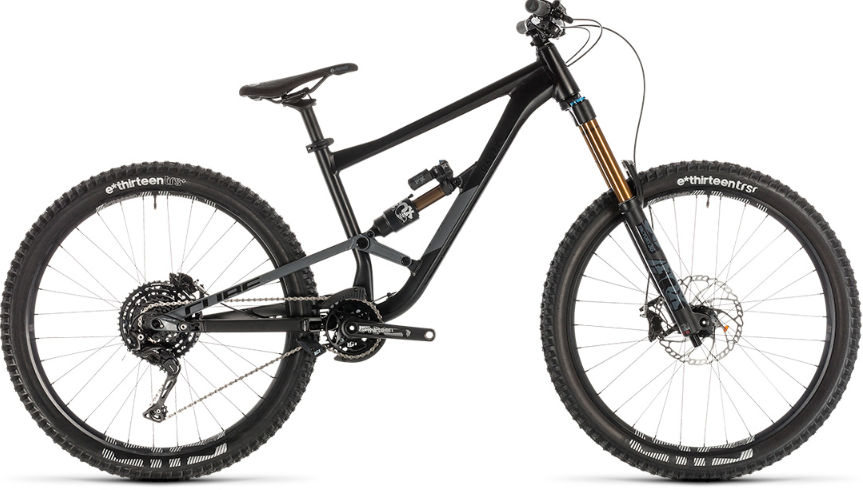

2018 Cube Hanzz 190 TM geometry
Full frame geometry for the 2018 Cube Hanzz 190 TM, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 607 | 407 | 75 | 64.5 | 110 | 554 | 375 | 10 | 426 | 1166 |
| 18 | 611 | 432 | 75 | 64.5 | 115 | 581 | 415 | 10 | 426 | 1193 |
| 20 | 620 | 452 | 75 | 64.5 | 125 | 604 | 460 | 10 | 426 | 1218 |
All measurements in millimetres unless marked (°) for angles.
