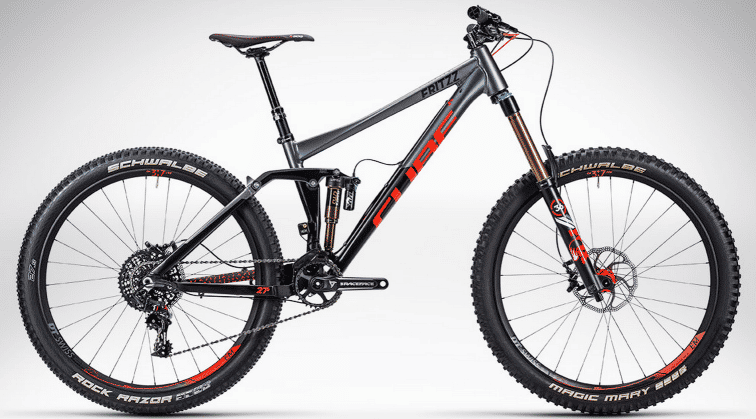

2014 Cube Fritzz 180 HPA 27.5 geometry
Full frame geometry for the 2014 Cube Fritzz 180 HPA 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 609 | 409 | 74.7 | 65.5 | 113 | 570 | 390 | 4 | 441 | 1175 |
| 18 | 618 | 426 | 74.7 | 65.5 | 123 | 590 | 400 | 4 | 441 | 1196 |
| 20 | 627 | 441 | 74.7 | 65.5 | 133 | 608 | 450 | 4 | 441 | 1215 |
| 22 | 645 | 446 | 74.7 | 65.5 | 153 | 619 | 500 | 4 | 441 | 1228 |
All measurements in millimetres unless marked (°) for angles.
