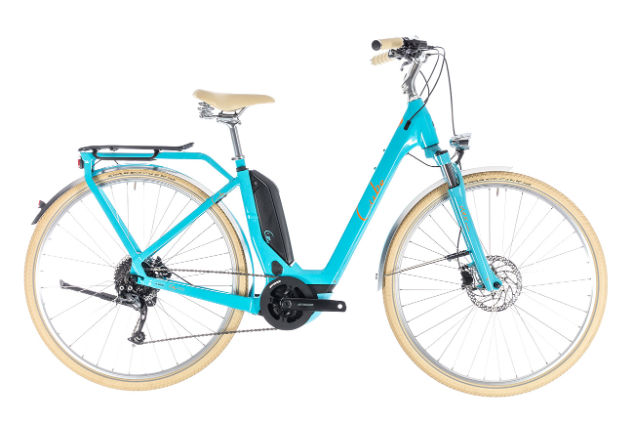

2018 Cube Elly Ride Hybrid geometry
Full frame geometry for the 2018 Cube Elly Ride Hybrid, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 627 | 379 | 73 | 69.5 | 140 | 571 | 450 | 70 | 480 | 1107 |
| 50 | 639 | 388 | 73 | 70 | 150 | 582 | 480 | 70 | 480 | 1115 |
| 54 | 653 | 396 | 73 | 70 | 165 | 593 | 520 | 70 | 480 | 1125 |
| 58 | 681 | 401 | 73 | 70 | 195 | 604 | 560 | 70 | 480 | 1137 |
All measurements in millimetres unless marked (°) for angles.
