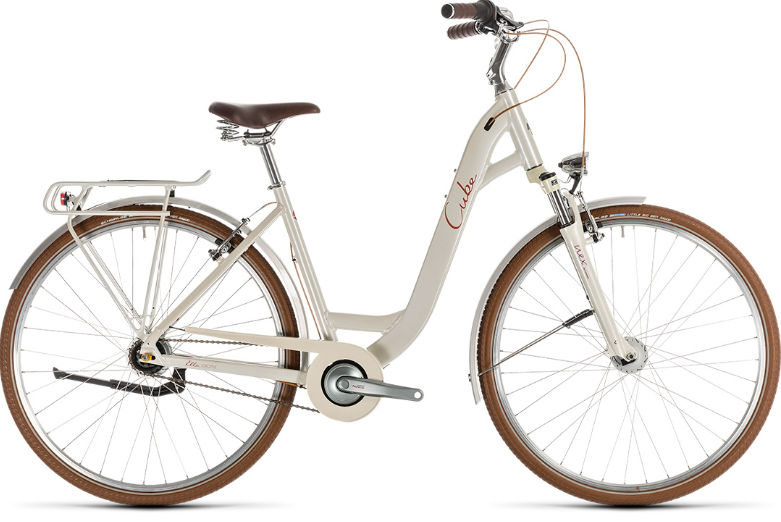

2018 Cube Ella geometry
Full frame geometry for the 2018 Cube Ella, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 650 | 379 | 73 | 70 | 170 | 578 | 379 | 75 | 455 | 1082 |
| 49 | 665 | 390 | 73 | 70 | 185 | 593 | 490 | 75 | 455 | 1098 |
| 53 | 679 | 401 | 73 | 70 | 200 | 608 | 530 | 75 | 455 | 1114 |
All measurements in millimetres unless marked (°) for angles.
