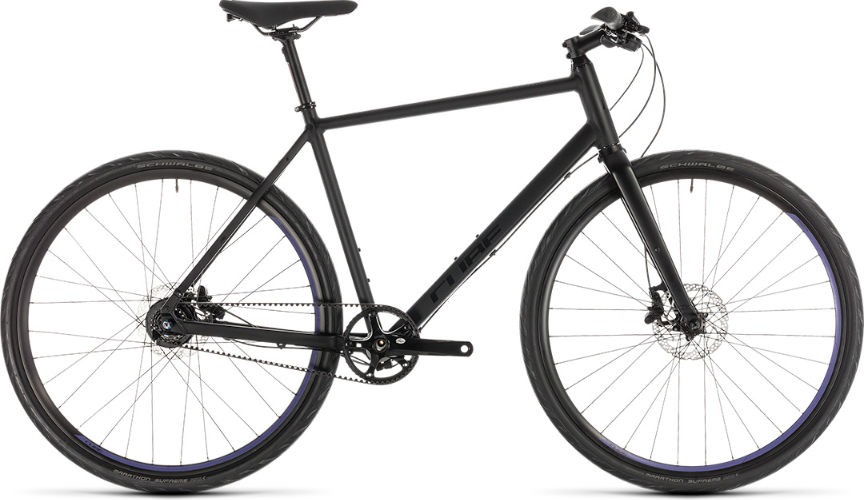

2019 Cube Editor MK II geometry
Full frame geometry for the 2019 Cube Editor MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 537 | 396 | 73 | 70 | 135 | 560 | 440 | 745 | 50 | 430 | 1048 |
| 50 | 555 | 400 | 73 | 71 | 150 | 570 | 480 | 777 | 50 | 430 | 1048 |
| 54 | 577 | 409 | 73 | 72 | 170 | 586 | 520 | 810 | 50 | 430 | 1055 |
| 58 | 597 | 414 | 73 | 72 | 190 | 596 | 560 | 842 | 50 | 430 | 1066 |
| 62 | 616 | 419 | 73 | 72 | 210 | 607 | 600 | 872 | 50 | 430 | 1077 |
All measurements in millimetres unless marked (°) for angles.
