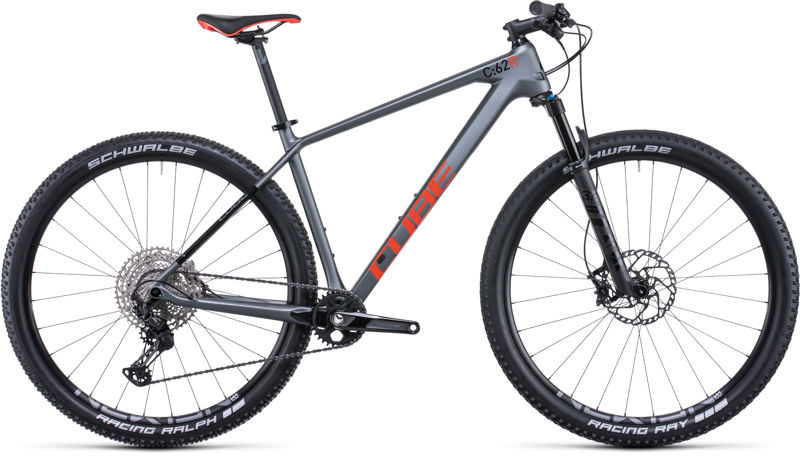

2022 Cube Cube Reaction C:62 Race geometry
Full frame geometry for the 2022 Cube Cube Reaction C:62 Race, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15" S | 608.7 | 388.8 | 73.5 | 69 | 100 | 567 | 370 | 65 | 423 | 1070.1 |
| 17" M | 618.1 | 406.3 | 73.5 | 69 | 110 | 587.5 | 420 | 65 | 423 | 1091.2 |
| 19" L | 627.4 | 424.8 | 73.5 | 69 | 120 | 609 | 470 | 65 | 423 | 1113.3 |
| 21" XL | 636.8 | 441 | 73.5 | 69 | 130 | 628 | 515 | 65 | 423 | 1137.9 |
| 23" XXL | 650.8 | 456.4 | 73.5 | 69 | 145 | 648 | 565 | 65 | 423 | 1153.8 |
All measurements in millimetres unless marked (°) for angles.
