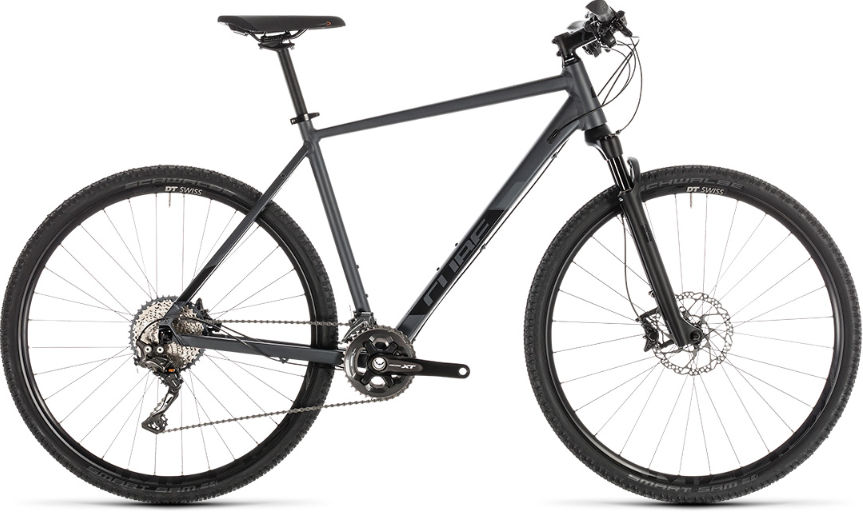

2018 Cube Cross geometry
Full frame geometry for the 2018 Cube Cross, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 591 | 389 | 73 | 71 | 105 | 570 | 460 | 60 | 445 | 1057 |
| 50 | 607 | 401 | 73 | 71 | 120 | 585 | 500 | 60 | 445 | 1078 |
| 54 | 622 | 410 | 73 | 71 | 140 | 600 | 540 | 60 | 445 | 1088 |
| 58 | 636 | 421 | 73 | 71 | 155 | 615 | 580 | 60 | 445 | 1104 |
| 62 | 650 | 423 | 73 | 71 | 170 | 622 | 620 | 60 | 445 | 1112 |
All measurements in millimetres unless marked (°) for angles.
