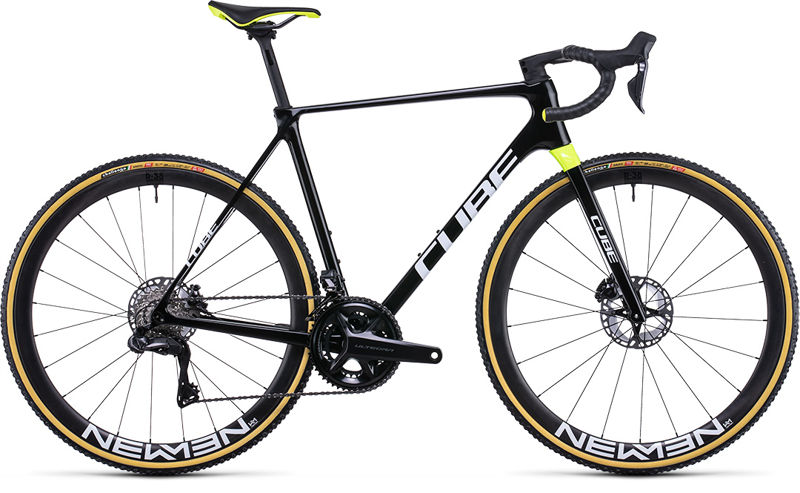

2022 Cube Cross Race geometry
Full frame geometry for the 2022 Cube Cross Race, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 cm | 519.9 | 380.8 | 74.5 | 71.5 | 92.9 | 525 | 468 | 765 | 63 | 423 | 1000.5 |
| 53 cm | 543.9 | 383 | 73.8 | 71.7 | 117.4 | 541 | 598 | 791 | 63 | 423 | 1008.8 |
| 56 cm | 570.1 | 390 | 73.4 | 72 | 143.9 | 560 | 528 | 819 | 63 | 425 | 1023.5 |
| 58 cm | 589.2 | 396.1 | 73.2 | 72 | 163.9 | 574 | 548 | 838 | 63 | 425 | 1035.8 |
| 61 cm | 613 | 405.6 | 73 | 72.5 | 186.9 | 593 | 578 | 864 | 63 | 425 | 1047.5 |
All measurements in millimetres unless marked (°) for angles.
