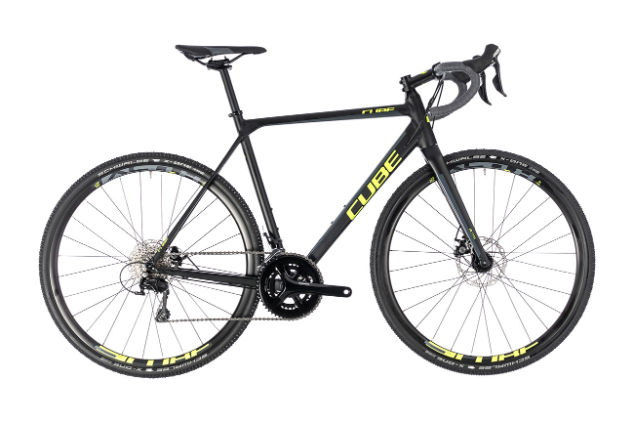

2018 Cube Cross Race MK II geometry
Full frame geometry for the 2018 Cube Cross Race MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 530 | 376 | 75 | 70.5 | 115 | 518 | 500 | 68 | 430 | 1013 |
| 53 | 555 | 377 | 74 | 70.8 | 140 | 536 | 530 | 68 | 430 | 1009 |
| 56 | 578 | 383 | 73.5 | 72 | 160 | 554 | 560 | 68 | 430 | 1021 |
| 58 | 599 | 387 | 73 | 72.5 | 180 | 570 | 580 | 68 | 430 | 1027 |
| 61 | 625 | 397 | 73 | 73 | 205 | 588 | 610 | 68 | 430 | 1040 |
All measurements in millimetres unless marked (°) for angles.
