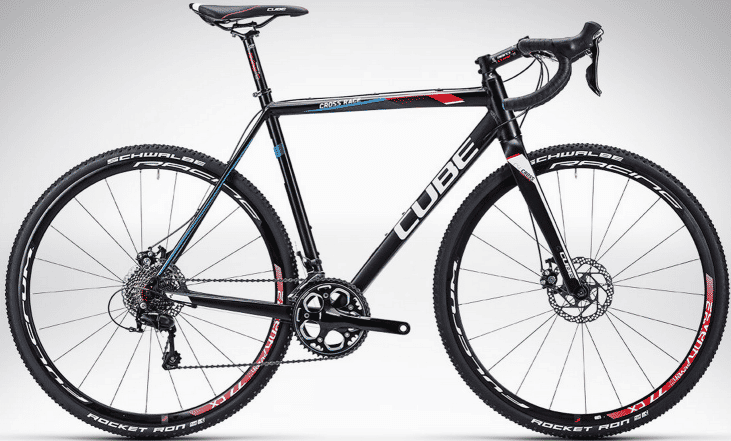

2014 Cube Cross Race Disc geometry
Full frame geometry for the 2014 Cube Cross Race Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 53 | 534 | 379 | 74 | 71 | 120 | 532 | 530 | 60 | 425 | 1010 |
| 56 | 555 | 381 | 73.5 | 71.5 | 140 | 545 | 560 | 60 | 425 | 1014 |
| 59 | 576 | 394 | 73.5 | 72 | 160 | 565 | 590 | 60 | 425 | 1030 |
| 62 | 595 | 406 | 73 | 72 | 180 | 588 | 620 | 60 | 425 | 1048 |
All measurements in millimetres unless marked (°) for angles.
