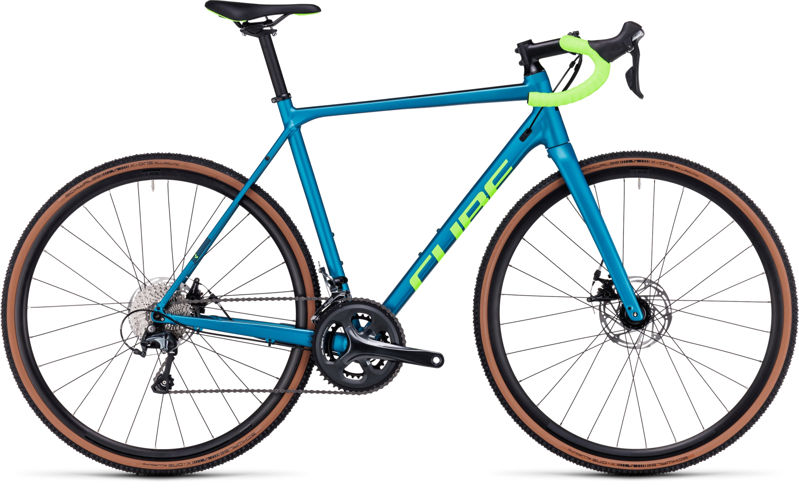

2023 Cube Corss Race geometry
Full frame geometry for the 2023 Cube Corss Race, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| 50 cm | 529.8 | 376.6 | 74.8 | 70.3 | 115 | 520.5 | 430 | 1015.4 |
| 53 cm | 555.3 | 372.6 | 73.6 | 70.8 | 140 | 536 | 430 | 1015.6 |
| 56 cm | 578.8 | 379.3 | 73.2 | 72 | 160 | 554 | 430 | 1018.2 |
| 58 cm | 599.7 | 386 | 73 | 72.5 | 180 | 570 | 430 | 1027.1 |
| 61 cm | 625.5 | 396.8 | 73 | 73 | 205 | 588 | 430 | 1039.9 |
All measurements in millimetres unless marked (°) for angles.
