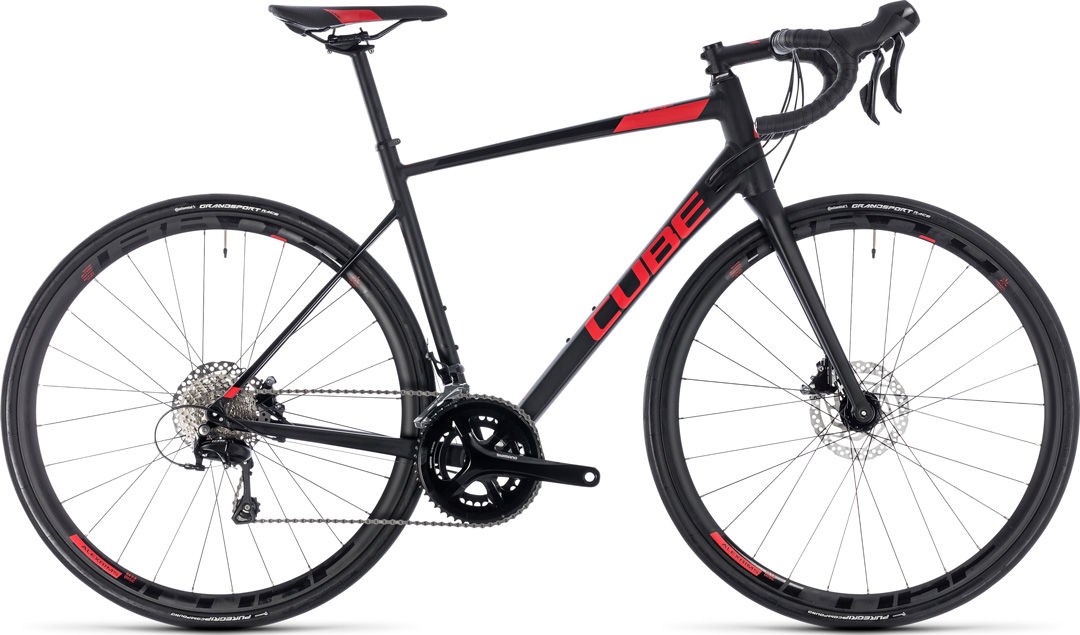

2018 Cube Attain Disc geometry
Full frame geometry for the 2018 Cube Attain Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 538 | 369 | 74.6 | 71.5 | 130 | 517 | 460 | 74 | 415 | 985 |
| 53 | 561 | 376 | 74 | 72 | 152 | 537 | 490 | 74 | 415 | 995 |
| 56 | 591 | 385 | 73.5 | 72.5 | 182 | 560 | 520 | 74 | 415 | 1009 |
| 58 | 610 | 388 | 73 | 72.5 | 202 | 575 | 540 | 74 | 415 | 1018 |
| 60 | 629 | 392 | 72.5 | 72.5 | 222 | 590 | 560 | 74 | 417 | 1030 |
| 62 | 649 | 391 | 72.5 | 72.5 | 242 | 595 | 580 | 74 | 417 | 1034 |
All measurements in millimetres unless marked (°) for angles.
