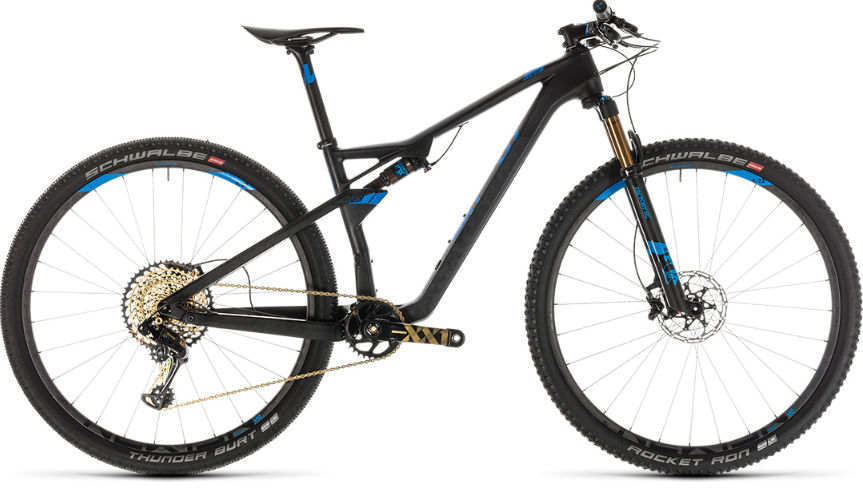

2018 Cube AMS C:68 geometry
Full frame geometry for the 2018 Cube AMS C:68, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 590 | 405 | 74.5 | 70 | 97 | 565 | 370 | 42 | 443 | 1099 |
| 18 | 600 | 427 | 74.5 | 70 | 107 | 590 | 420 | 42 | 443 | 1125 |
| 20 | 609 | 447 | 74.5 | 70 | 117 | 613 | 470 | 42 | 443 | 1149 |
| 22 | 618 | 467 | 74.5 | 70 | 127 | 636 | 520 | 42 | 443 | 1172 |
All measurements in millimetres unless marked (°) for angles.
