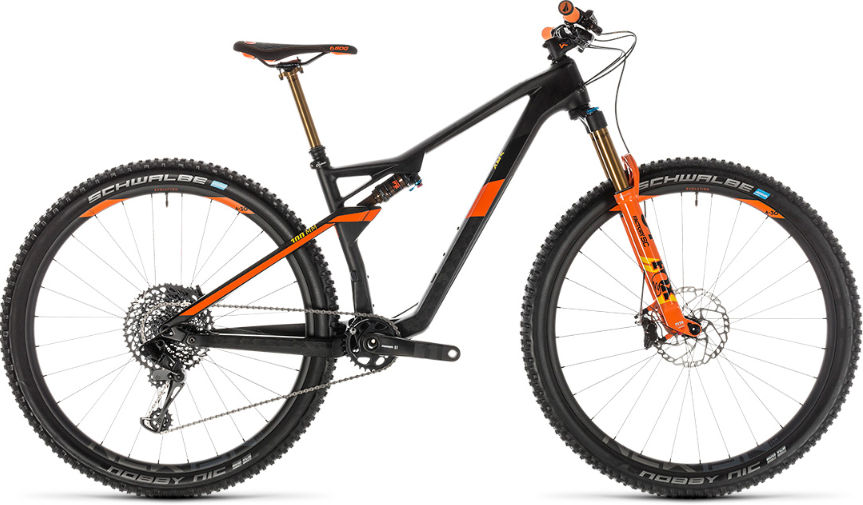

2018 Cube AMS C:68 TM geometry
Full frame geometry for the 2018 Cube AMS C:68 TM, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 599 | 391 | 73.5 | 69 | 97 | 569 | 370 | 32 | 443 | 1109 |
| 18 | 609 | 414 | 73.5 | 69 | 107 | 594 | 420 | 32 | 443 | 1134 |
| 20 | 618 | 434 | 73.5 | 69 | 117 | 617 | 470 | 32 | 443 | 1157 |
| 22 | 628 | 454 | 73.5 | 69 | 127 | 640 | 520 | 32 | 443 | 1181 |
All measurements in millimetres unless marked (°) for angles.
