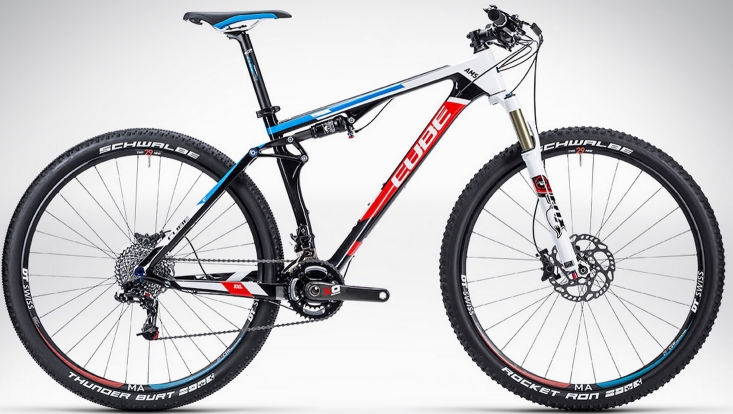

2014 Cube AMS 100 Super HPC 29 geometry
Full frame geometry for the 2014 Cube AMS 100 Super HPC 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 17 | 604 | 415 | 74 | 71 | 104 | 588 | 434 | 50 | 450 | 1112 |
| 19 | 615 | 433 | 74 | 71 | 115 | 609 | 483 | 50 | 450 | 1134 |
| 21 | 624 | 445 | 74 | 71 | 125 | 624 | 534 | 50 | 450 | 1150 |
| 23 | 633 | 448 | 74 | 71 | 135 | 630 | 580 | 50 | 450 | 1156 |
All measurements in millimetres unless marked (°) for angles.
