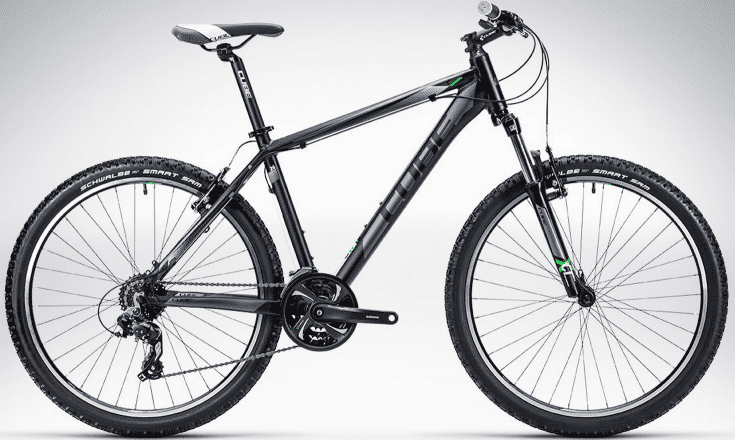

2014 Cube Aim 26 geometry
Full frame geometry for the 2014 Cube Aim 26, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 559 | 345 | 72 | 70 | 100 | 527 | 360 | 33 | 420 | 997 |
| 16 | 568 | 367 | 72 | 70 | 110 | 550 | 405 | 33 | 420 | 1020 |
| 18 | 587 | 381 | 72 | 70 | 130 | 572 | 450 | 33 | 420 | 1043 |
All measurements in millimetres unless marked (°) for angles.
