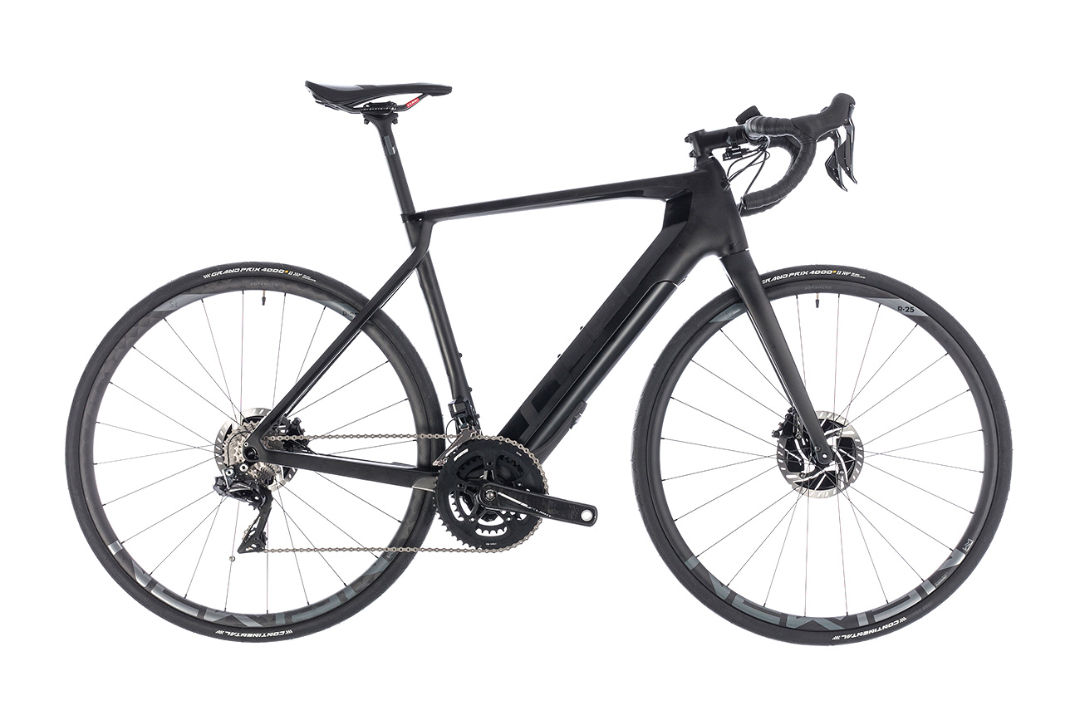

2018 Cube Agree Hybrid C:62 geometry
Full frame geometry for the 2018 Cube Agree Hybrid C:62, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 53 | 560 | 382 | 74.5 | 71.5 | 137 | 537 | 490 | 74 | 430 | 1016 |
| 56 | 592 | 384 | 73.5 | 72.5 | 167 | 560 | 520 | 74 | 430 | 1020 |
| 59 | 621 | 387 | 72.5 | 72.5 | 197 | 583 | 550 | 74 | 430 | 1031 |
All measurements in millimetres unless marked (°) for angles.
